Modern All-In-One Solar Street Light
YH0103A series features a dual-power design, allowing it to operate both as a solar-powered light and as a grid-connected streetlight. This high-efficiency All-In-One solar street light is ideal for high-end small outdoor projects, offering three installation methods to meet diverse usage requirements.

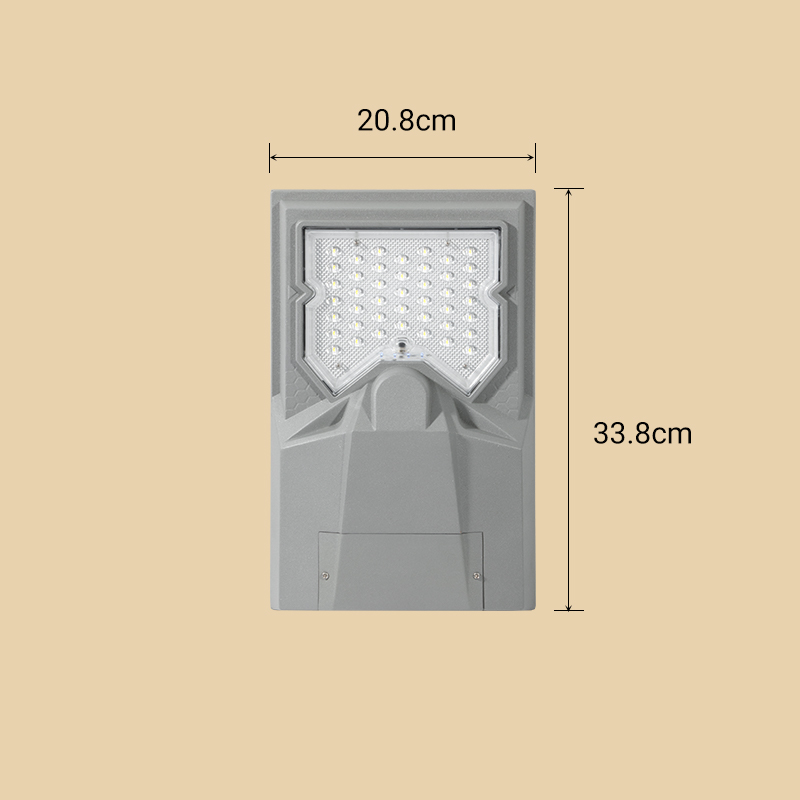

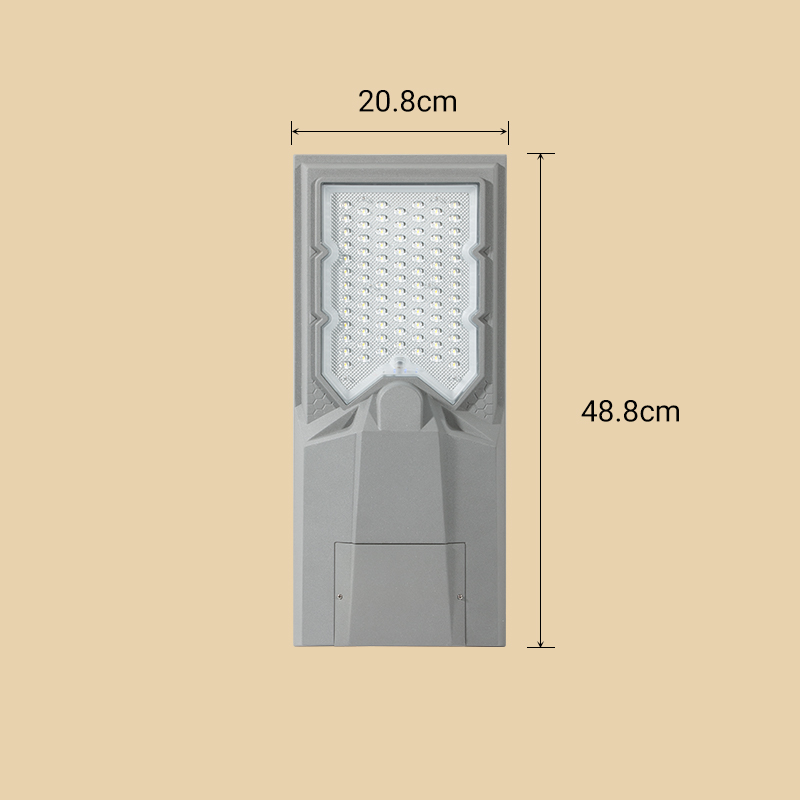

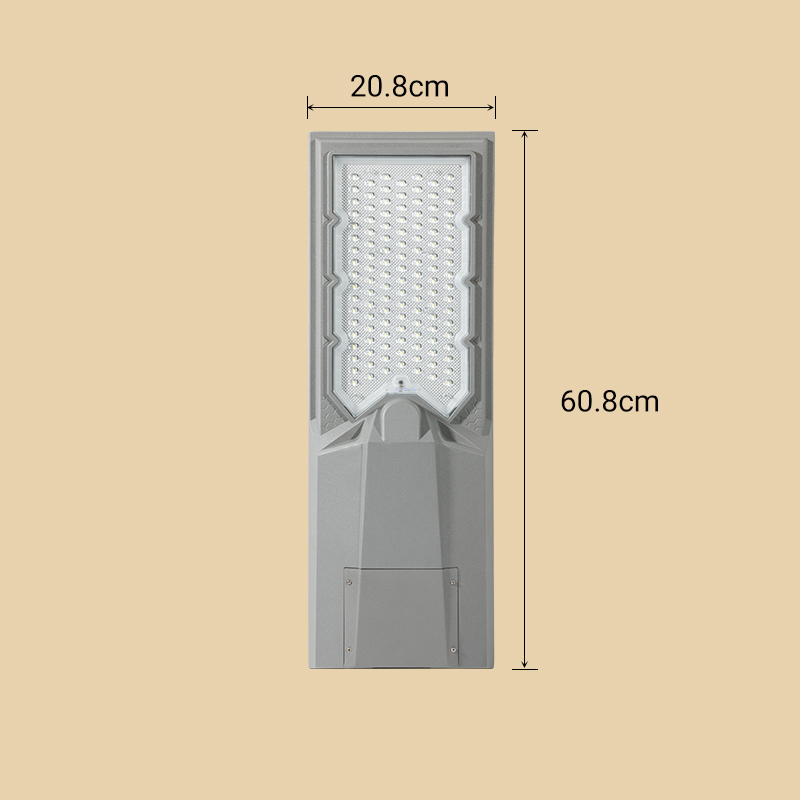

| Size |  |
 |
 |
| Model | YH0103A | YH0104A | YH0105A |
| LED output/Lamp Wattage | 12W | 18W | 22W |
| LED Light Source | LED 3030 * 43PCS | LED 3030 * 85PCS | LED 3030 * 120PCS |
| Solar Panel | Mono Solar Panel 5V / 12W | Mono Solar Panel 5V / 18W | Mono Solar Panel 5V / 22W |
| Lumen | 1100 LM | 1400 LM | 2200 LM |
| Luminous Efficacy | 155 lm / w | 155 lm / w | 175 lm / w |
| Battery | LiFePO4 3.2v / 14000mAh | LiFePO4 3.2v / 18000mAh | LiFePO4 3.2v / 20000mAh |
| Color Temperature | 6000 – 6500k | 6000 – 6500k | 6000 – 6500k |
| CRI | 70 | 70 | 70 |
| Beam Angle | 145°*80° | 145°*80° | 145°*80° |
| Material | Die-cast aluminum + PC | Die-cast aluminum + PC | Die-cast aluminum + PC |
| IP Rating | IP66 | IP66 | IP66 |
| Charging Time | 4-6 H | 4-6 H | 4-6 H |
| Work Time | 12 H | 12 H | 12 H |
| Control Mode | Light / Time | Light / Time | Light / Time |
| Mounting Height | 3 – 5M | 4 – 6M | 4 – 6M |
| Operating Temperature | -10 – 50℃ | -10 – 50℃ | -10 – 50℃ |
| Pole Diameter | φ60 - 90mm | φ60 - 90mm | φ60 - 90mm |
| Warranty | 5 years | 5 years | years |
The square arm offers a more stable structure, providing stronger wind and shock resistance, easier installation, and improved heat dissipation. This design prolongs the service life of the lamps and reduces operating costs.
Our All-In-One solar street lights are equipped with MPPT and BMS controllers. These improve charging efficiency even under variable sunlight conditions and prevent overcharging and overdischarging, ensuring safer and more efficient operation.
Arm Mount Installation
The solar led street light attaches to an arm bracket, mounted on the wall using expansion bolts for secure placement.
Plate Mount Installation
Using a metal plate bracket and expansion bolts, the solar led street light mounts directly onto the wall for a sturdy installation.
Pole Mount Installation
The LED solar street light mounts on a pole with an arm bracket and clamps, but specifically for the 22W model, it can also be inserted directly into the pole using a metal sleeve for quick and easy installation.
