Aluminum LED Integrated Solar Street Light
This aluminum solar street light series provides reliable lighting for larger outdoor areas. Made from corrosion-resistant aluminum alloy and featuring a modular design, this solar street light adapts to the demanding lighting needs of harsh environments while offering customizable configurations. With its high power output and adjustable LED modules, it is ideal for parking lots, parks, and rural landscapes.
| Size |  |
 |

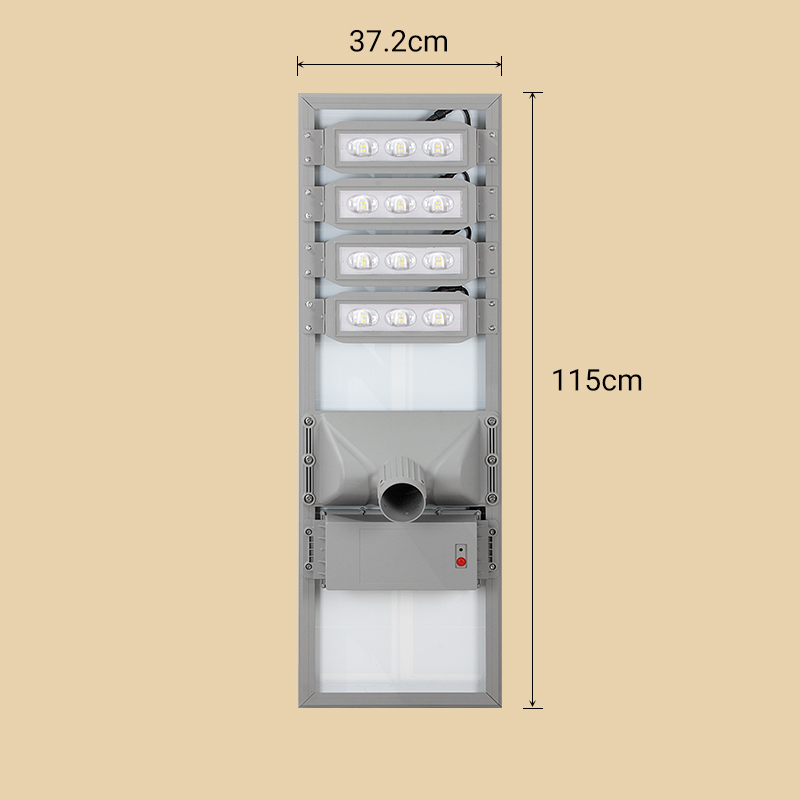

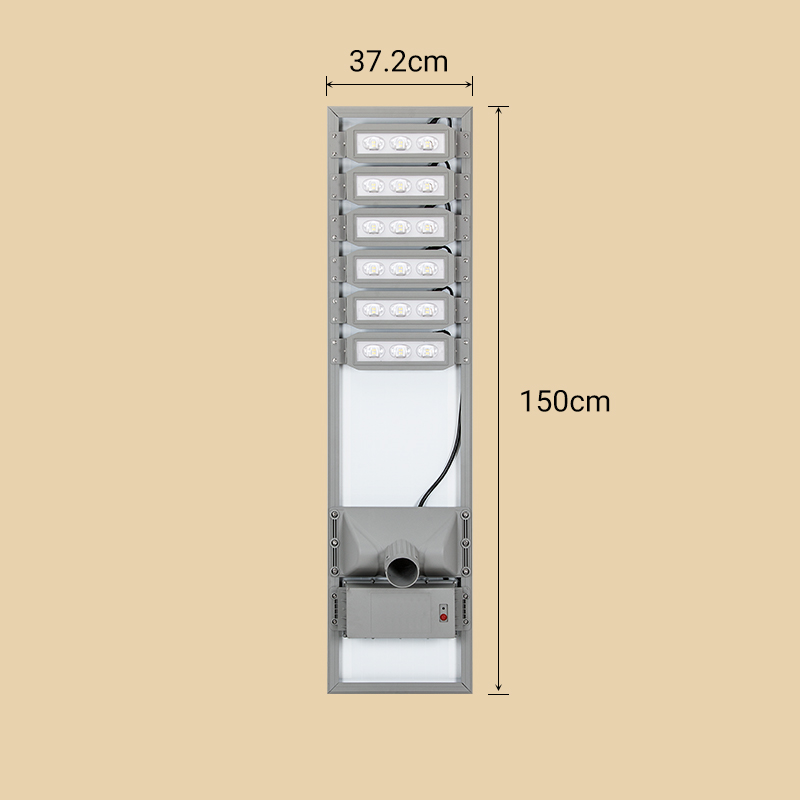

| Model | YH0218 | YH0220 |
| LED output/Lamp Wattage | 60W | 90W |
| LED Light Source | LED 5050 * 18PCS | LED 5050 * 18PCS |
| Solar Panel | Polycrystalline Silicon Solar Panel 5V / 60W | Polycrystalline Silicon Solar Panel 5V / 90W |
| Lumen | 3500 LM | 5000 LM |
| Luminous Efficacy | 140 lm / w | 100 lm / w |
| Battery | LiFePO4 3.2v / 100AH | NCM 3.7v / 156AH |
| Color Temperature | 6000 – 6500k | 6000 – 6500k |
| CRI | 70 | 70 |
| Beam Angle | 130°*65° | 130°*65° |
| Material | Aluminum + PC | Aluminum + PC |
| IP Rating | IP65 | IP65 |
| Charging Time | 6-9 H | 6-9 H |
| Work Time | 3-5 Overcast Days | 3-5 Overcast Days |
| Control Mode | Light / Time | Light / Time |
| Mounting Height | 5-8M | 5-8M |
| Operating Temperature | -10 – 50℃ | -10 – 50℃ |
| Pole Diameter | φ76mm | φ76mm |
| Warranty | 5 years | 5 years |
We equip this solar street light series with a ternary lithium battery, known for its high energy density and long service life. This ensures extended working hours, making it suitable for harsh weather conditions and ideal for demanding outdoor lighting projects.
YINGHAO provides customized solutions for the YH0218 series, including adjustments to brightness, solar panel type, and lighting modes to meet the specific needs of your project. Additionally, we offer professional after-sales support, technical assistance, and maintenance guidance.
