All In Two Solar Street Light
This aluminum solar split street light from YINGHAO features independent solar panels, offering greater installation flexibility while maximizing energy capture. The light body is designed with a recessed heat dissipation structure, ensuring long-term durability and consistent performance. It is ideal for providing high-quality lighting in parks, parking lots, rural roads, and more.

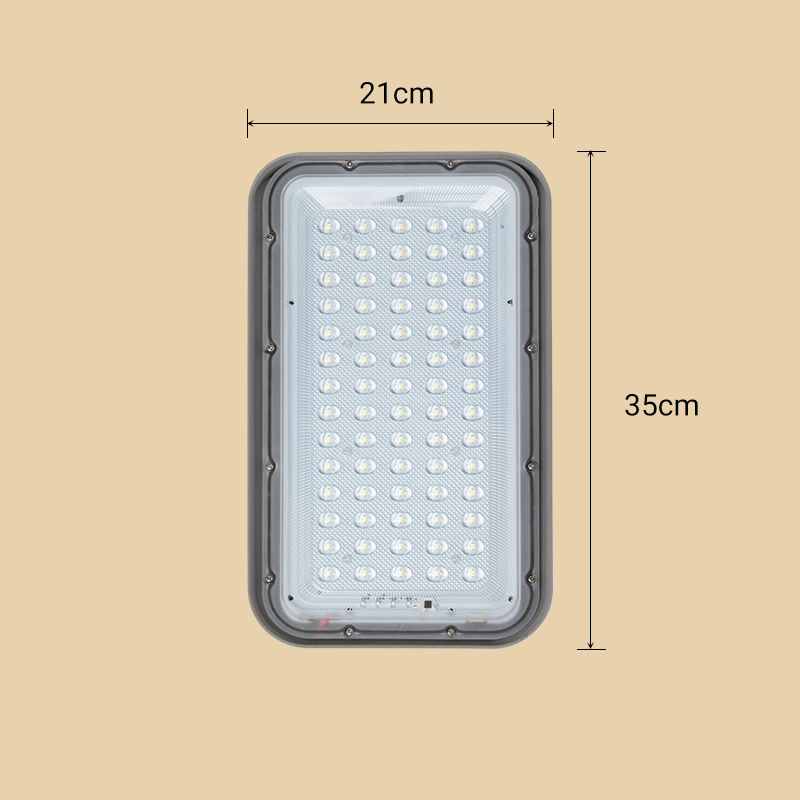

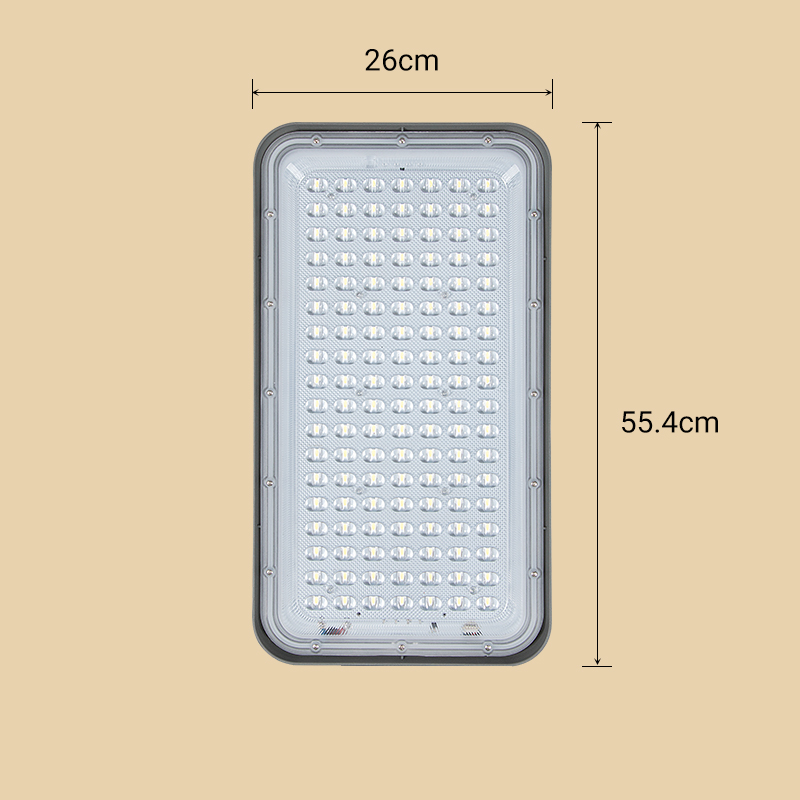

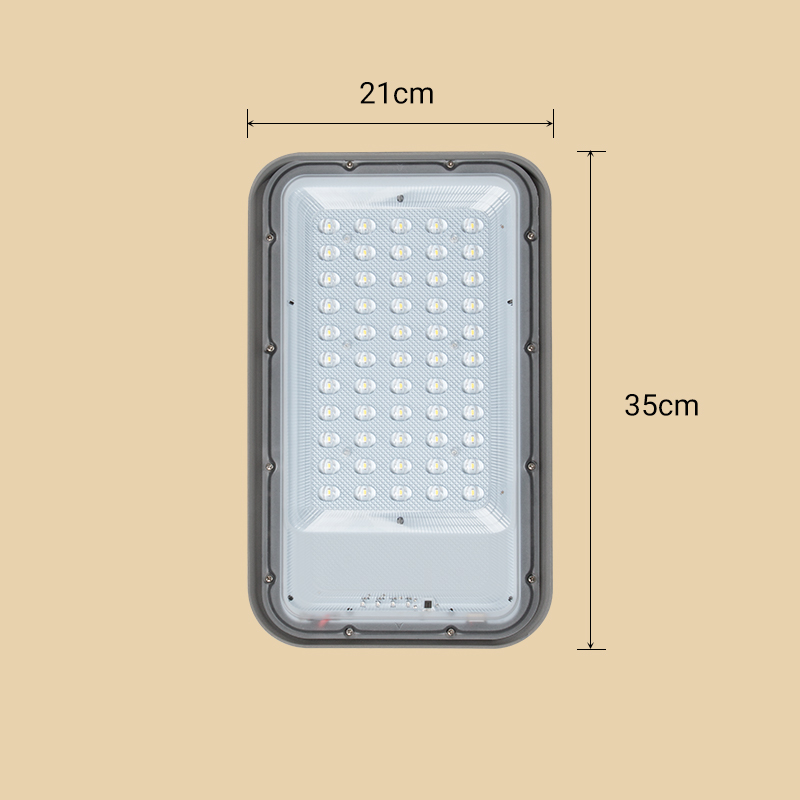

| Size |  |
 |
|
 |
|
| Model | YH0101 | YH0101A | YH0101B | YH0102A | YH0102 |
| LED output/Lamp Wattage | 20W | 40W | 60W | 80W | 90W |
| LED Light Source | LED 5050 * 55PCS | LED 5050 * 70PCS | LED 5050 * 70PCS | LED 5050 * 126PCS | LED 5050 * 126PCS |
| Solar Panel | Polycrystalline Silicon Solar Panel 5V / 20W | Mono Solar Panel 6V / 40W | Mono Solar Panel 6V / 60W | Mono Solar Panel 6V / 80W | Mono Solar Panel 6V / 90W |
| Lumen | 1500 LM | 3500 LM | 5000 LM | 7000 LM | 9500 LM |
| Luminous Efficacy | 158 lm / w | 180 lm / w | 175 lm / w | 225 lm / w | 165 lm / w |
| Battery | LiFePO4 3.2v / 20AH | LiFePO4 3.2v / 40AH | LiFePO4 3.2v / 60AH | LiFePO4 3.2v / 86AH | NCM 3.7v / 156AH |
| Color Temperature | 6000 – 6500k | 6000 – 6500k | 6000 – 6500k | 6000 – 6500k | 6000 – 6500k |
| CRI | 70 | 70 | 70 | 70 | 70 |
| Beam Angle | 135°*45° | 135°*45° | 135°*45° | 135°*45° | 135°*45° |
| Material | Aluminum + PC | Aluminum + PC | Aluminum + PC | Aluminum + PC | Aluminum + PC |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Charging Time | 5-6 H | 5-6 H | 5-6 H | 5-6 H | 5-6 H |
| Work Time | 1-3 Overcast Days | 3-5 Overcast Days | 3-5 Overcast Days | 3-5 Overcast Days | 5-6 Overcast Days |
| Control Mode | Light / Time | Light / Time | Light / Time | Light / Time | Light / Time |
| Mounting Height | 3-5M | 4–6M | 4–6M | 4–6M | 6-8M |
| Operating Temperature | -10 – 50℃ | -10 – 50℃ | -10 – 50℃ | -10 – 50℃ | -10 – 50℃ |
| Pole Diameter | φ60 - 70mm | φ60 - 70mm | φ60 - 70mm | φ60 - 70mm | φ60 - 70mm |
| Warranty | 5 years | 5 years | 5 years | 5 years | 5 years |
The back of the YH0101 series' solar street light head features a specialized groove that significantly improves heat dissipation. This design helps maintain optimal operating temperatures, ensuring stable performance even in high-temperature environments.
The YH0101 series solar street lights feature up to 126 high-efficiency LED beads, combined with optical lenses for precise light distribution. This design reduces light waste, minimizes glare, and focuses light more effectively, achieving uniform illumination. It is ideal for parks, rural roads, and other areas that require consistent, high-quality lighting.
