All In One Led Solar Street Light With Motion Sensor
The YH0103 series is a solar street light with a motion sensor, made from UV-resistant ABS material. It supports both DC and solar charging, making it lightweight and highly cost-effective—ideal for buyers seeking maximum value.

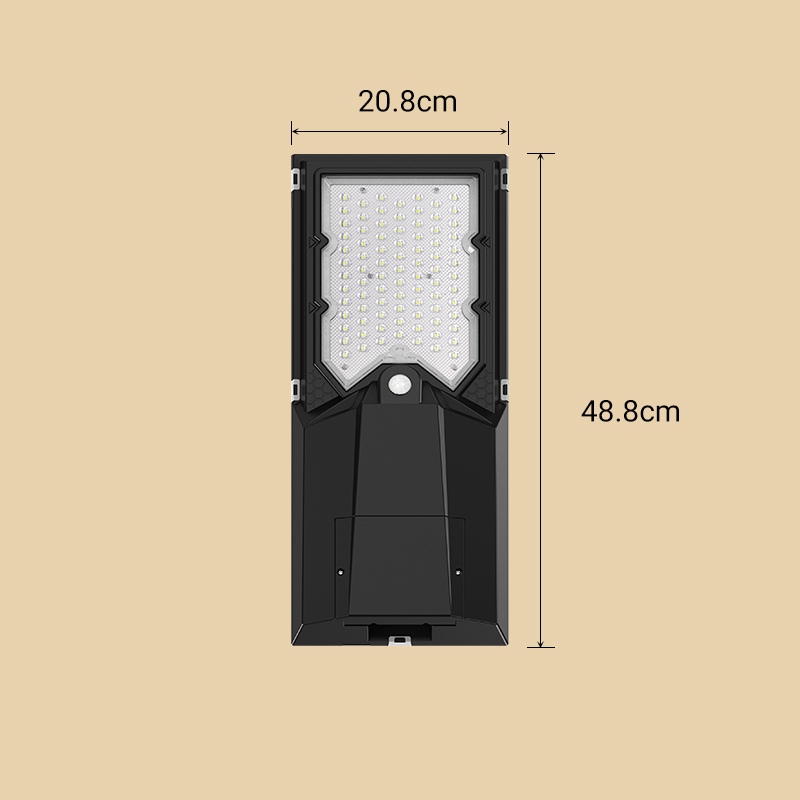

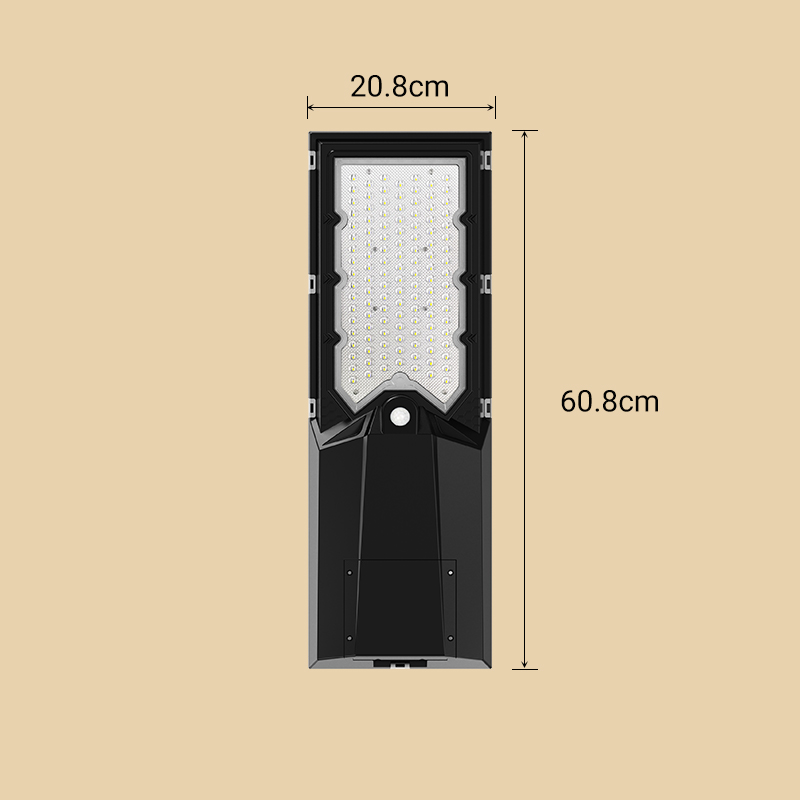

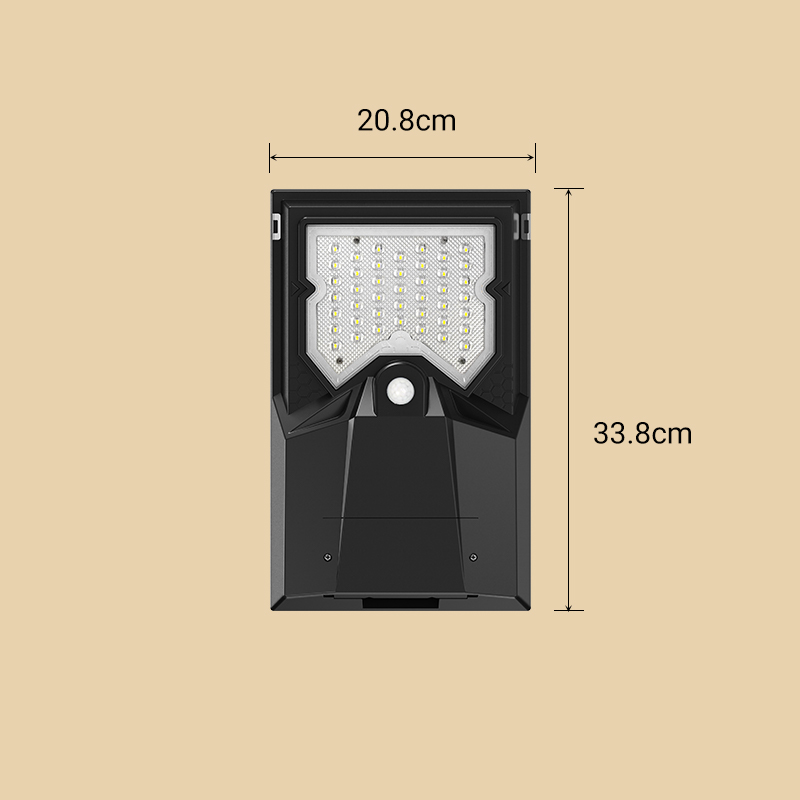

| Size |  |
 |
 |
| Model | YH0103 | YH0104 | YH0105 |
| LED output/Lamp Wattage | 12W | 18W | 22W |
| LED Light Source | LED 3030 * 43PCS | LED 3030 * 85PCS | LED 3030 * 120PCS |
| Solar Panel | Mono Solar Panel 5V / 12W | Mono Solar Panel 5V / 18W | Mono Solar Panel 5V / 22W |
| Lumen | 1100 LM | 1400 LM | 2200 LM |
| Luminous Efficacy | 155 lm / w | 155 lm / w | 175 lm / w |
| Battery | LiFePO4 3.2v / 14000mAh | LiFePO4 3.2v / 18000mAh | LiFePO4 3.2v / 20000mAh |
| Color Temperature | 6000 – 6500k | 6000 – 6500k | 6000 – 6500k |
| CRI | 70 | 70 | 70 |
| Beam Angle | 145°*80° | 145°*80° | 145°*80° |
| Sensing Distance | 4-10M | 4-10M | 4-10M |
| Material | ABS + PC | ABS + PC | ABS + PC |
| IP Rating | IP66 | IP66 | IP66 |
| Charging Time | 4-6 H | 4-6 H | 4-6 H |
| Work Time | 12 H | 12 H | 12 H |
| Control Mode | Light / Time / PIR | Light / Time/ PIR | Light / Time/ PIR |
| Mounting Height | 3 – 5M | 4 – 6M | 4 – 6M |
| Operating Temperature | -10 – 50℃ | -10 – 50℃ | -10 – 50℃ |
| Pole Diameter | φ60 - 90mm | φ60 - 90mm | φ60 - 90mm |
| Warranty | 5 years | 5 years | years |
This solar motion sensor street light features dual charging capabilities, supporting both DC and solar charging. Even in areas with inconsistent sunlight, this ensures reliable operation and provides greater flexibility.
Designed for efficient heat dissipation, this solar motion sensor street light uses UV-resistant ABS material and an optimized airflow structure to reduce heat buildup, prolonging the component lifespan. This design ensures stable operation in hot climates and reduces the need for frequent maintenance.
Arm Mounting
The solar street light is fixed to an arm bracket, which is then securely mounted on the wall for firm and safe placement.
Plate Mount
Using a metal plate bracket, the solar street light is mounted directly onto the wall, providing a simple yet sturdy installation solution.
Clamp Mounting
The solar street light can be mounted on a pole using an arm bracket with clamps, securely fastening the light to the pole for a sturdy and reliable installation.
