Outdoor Solar Motion Detector LED Garden Spotlight

solutions

This pair of solar spotlights for the multi-bead solar spotlight, giving a high brightness, the appearance of more beads features, by the favourite multi-bead spotlight buyers!

  • Multiple lamp beads; PIR model (18PCS), non-PIR model (24PCS)
  • IP65 waterproof
  • With power failure memory function
  • Adjustable lamp head
  • Can be plugged into the ground, can be wall-mounted
  • PIR human body sensor function
  • Optional custom remote control for lighting activation

Product Description

This pair of solar led garden spotlights focuses on the design of multiple light beads and high brightness, our this solar landscape spot lights all adopts the integrated spotlight lens, which makes the light beam more focused and durable, the difference is only different in the basic function, including PIR human body sensing and colour temperature. The difference is only in the basic functions, including PIR body sensing and colour temperature. Increased ease of customisation. The coverage of its applicable scenes is also more diverse.

Customization

In the event that you require customization for your product, please note that our customization service is subject to a minimum order quantity, please contact us for details. We offer the following customisation services:

  • Printing of brand logos
  • Product packaging customisation
  • Product feature customisation (modification of PIR sensor settings, including sensing distance, angle and duration, or customised lighting features such as light colour, brightness, colour temperature for non-PIR models)

YINGHAO offers customisation services tailored to your project. Contact us now to enquire about your project.

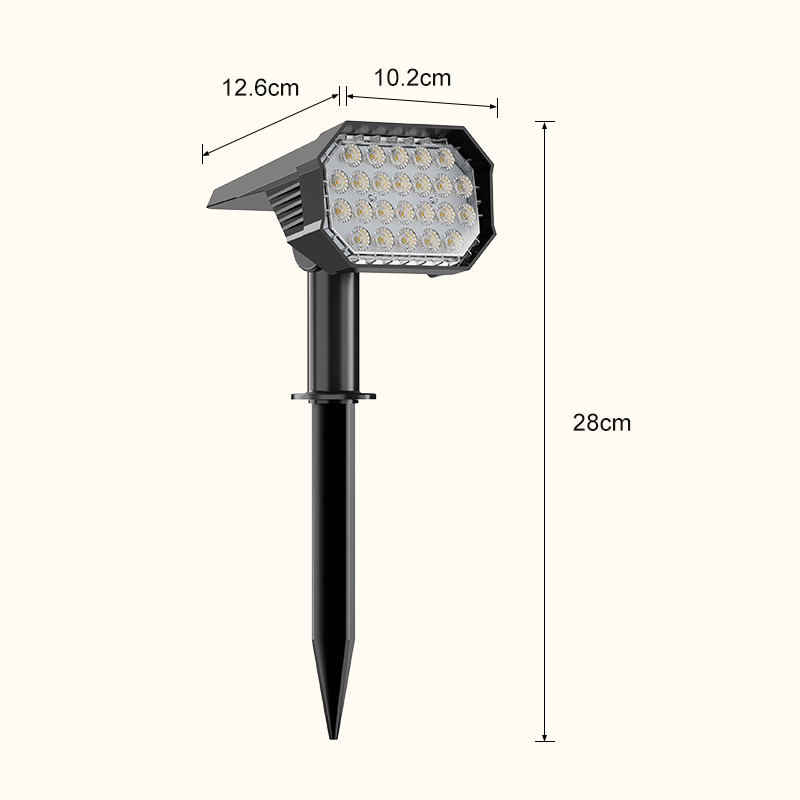

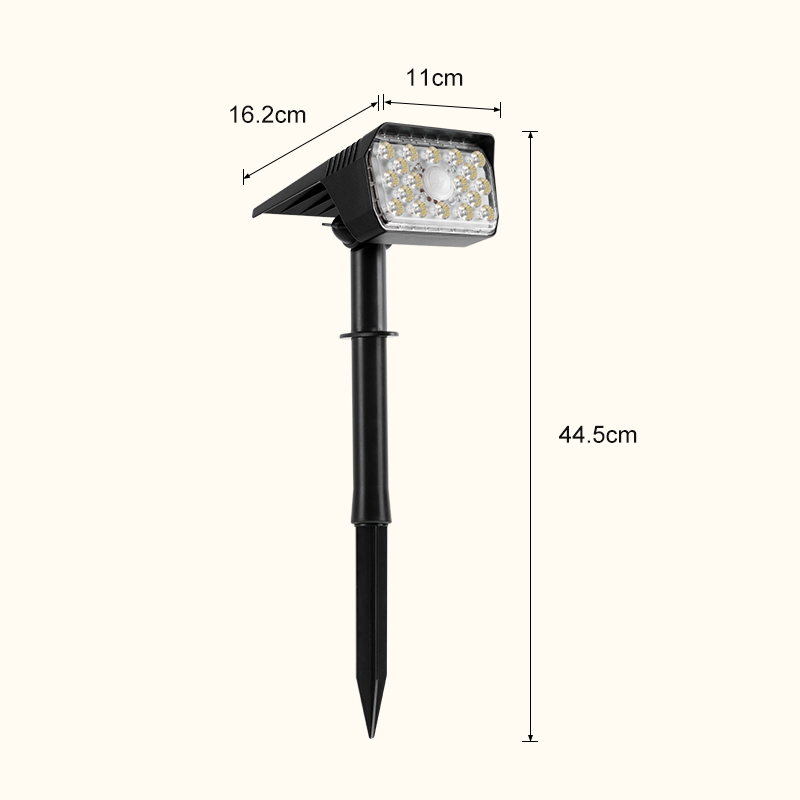

Size YH0526-PIR YH0528 YH0528-RGB
Model YH0526-PIR YH0528 YH0528-RGB
Luminous Flux (lm) 200 LM 100 LM 50 LM
Solar Panel  Mono Solar Panel
5V / 1.5W
Mono Solar Panel
5V / 0.65W
Mono Solar Panel
5V / 0.65W
Battery Type Li-ion 3.7v/2000mAh Li-ion 3.7v/1800mAh Li-ion 3.7v/1800mAh
CCT 2800-3200k or 6000-6500k 2800-3200k or 6000-6500k RGB
Material ABS , PC ABS , PC ABS , PC
LED Lamp  18PCS SMD2835 / 0.2W 24PCS SMD2835 / 0.2W 24PCS SMD2835 / 0.2W
Charging Time 5-6H 5-6H 5-6H
IP Code IP65 IP65 IP65
Motion Sensor Type PIR (passive infra-red)

-

-
Sensing Distance 5-8M - -
Sensing Angle 120° - -
Warranty 2Year 2Year 2Year



Outdoor Solar Motion Detector LED Garden Spotlight

Integrated Spotlight Lens

This series of solar powered garden spot lights features an integrated condensing lens, where each LED(SMD2835) is encapsulated within a uniform transparent lens surface. Key advantages include:

  1. More Focused Beam: The structure of the integrated condensing lens enhances beam focus, increasing both brightness and irradiation area.
  2. Enhanced Durability: Compared to individual lenses, the integrated lens design minimizes the risk of displacement or damage, improving the overall durability of the solar spotlight.
  3. Improved Sealing: The integrated panel offers a uniform, flat appearance while significantly reducing the risk of dust and moisture buildup between lenses, making it more dustproof and waterproof (IP65) to ensure the long-lasting performance of the solar spotlight lens.

Outdoor Solar Motion Detector LED Garden Spotlight

IPIR Induction Function

Outdoor solar induction spotlights have fewer lamp beads than non-induction models, but solar spotlights with induction function designed with safety lighting in mind will have higher lumen values, up to 200LM; and there will be two types of mounting methods, floor and wall, each of which provides a different way to enhance safety.
Sensor Modes:

  • Mode 1: Activates high brightness for 30-34 seconds upon detecting motion, then switches to low brightness.
  • Mode 2: Remains on for 8 hours, then turns off automatically.

Equipped with a power failure memory function, this spotlight retains the last selected mode even after a power interruption.

Outdoor Solar Motion Detector LED Garden Spotlight

Multiple Light Colours To Choose From

The non-inductive model of solar powered house spotlights has a variety of light colours to choose from, warm light, white light, RGB light colours, this multiple light colours design allows you to purchase different light colours according to different project requirements.
